12V & 240V Fitted Electrics

12V and 240V ELECTRICAL SYSTEMS



At Campervan Parts UK all staff are trained and certificated in electrical installation with all work being designed, constructed, inspected and tested to BS7671 and BSEN1648 standards.



12V ELECTRICS



As standard we use high capacity AGM dry cell leisure batteries with an intelligent split charge system or B2B chargers. The battery is better at dealing with the constant high currents and draws in your motorhome than any acid battery that some other converters use. The AGM battery is able to deliver high current on demand and has a relatively long life. They take a lot less time to charge than your normal wet cell battery and are completely sealed and vibration resistant, whereas the acid wet cell batteries are not and can expel flammable gases.

We can then either fit an intelligent split charge system or a battery to battery charger.

An intelligent split charge relay is a small item which is fitted to connect the vehicle batter to the leisure battery. When the vehicle is switched on and sat on tick over or whilst you’re driving it detects which of the two batteries has the lowest amount of charge in them and tells your vehicle alternator which battery to charge first. When both batteries are of similar charge, they will then both be charging at the same time.

A battery to battery charge system is used for newer vehicles as their alternators no longer charge a vehicle battery beyond 80% of charge. This is to leave room for a regenerative braking system which is also used to charge the vehicle battery.
This mean the vehicle does not charge to sufficient volts to operate a traditional voltage sensing relay. Any vehicle with stop start and regenerative breaking (which is most vehicles from 2012 on and now all Euro 6 vehicles) will have to have this system fitted.

All older vehicles without smart alternators have the choice of fitting this system if they wish. This system is a much more efficient way of charging any leisure battery as this does not use the vehicles alternator to charge the leisure battery.



All prices below include VAT and are based on empty, unconverted vehicles. Any additional work required to remove panels or seats, run cable or install products will be charged at £60 per hour (labour charge) additional to fitted costs.



Rolls S-12 95AGM leisure battery fitted with a Victron Intelligent split charge relay and all battery mounting including seat base back board – £695

Rolls S-12 95AGM leisure battery fitted with a Sterling 30 Amp Battery to Battery charger and all battery mounting including seat base back board – £820

Rolls S-12 95AGM leisure battery fitted with a CTEK D250SA 20 Amp Battery to Battery charger (Solar Ready) and all battery mounting including seat base back board – £865

Rolls S-12 128AGM leisure battery fitted with a Victron Intelligent split charge relay and all battery mounting including seat base back board – £745

Rolls S-12 128AGM leisure battery fitted with a Sterling 30 Amp Battery to Battery charger and all battery mounting including seat base back board – £870

Rolls S-12 128AGM leisure battery fitted with a CTEK D250SA 20 Amp Battery to Battery charger (Solar Ready) and all battery mounting including seat base back board – £915

12v Socket – Plus cable cost. £2 per metre from battery plus labour – £25

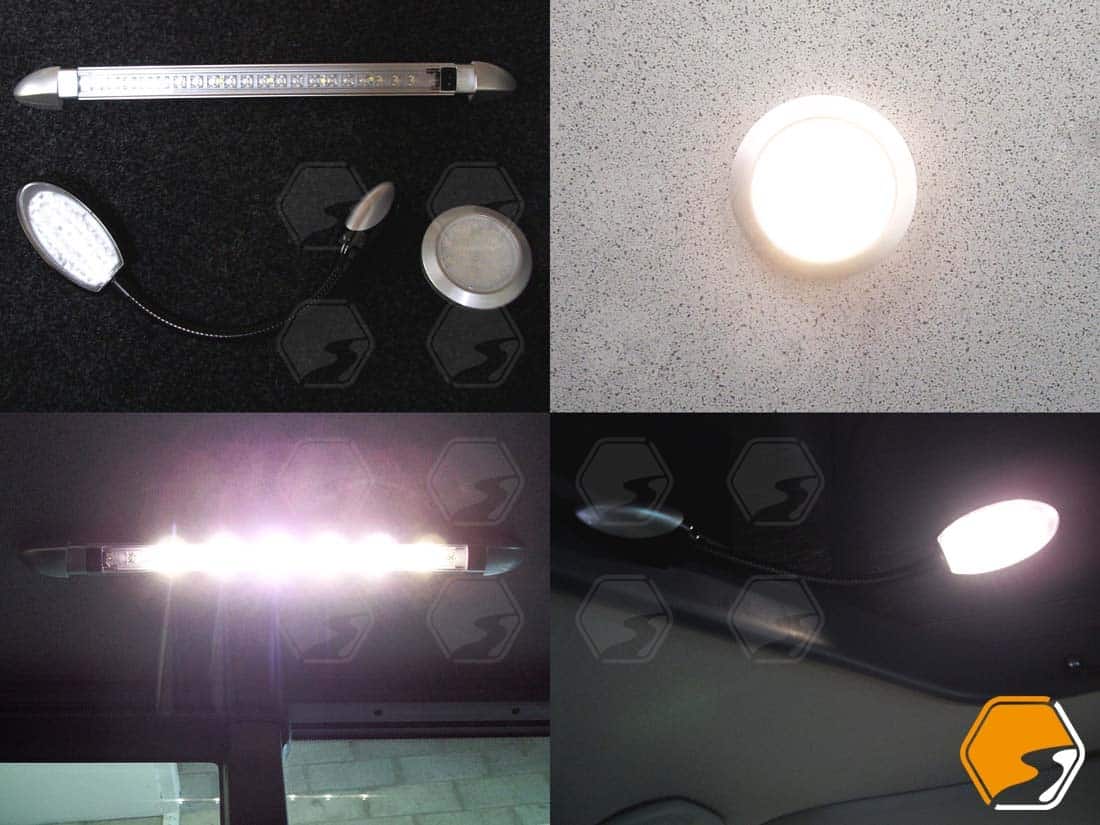

12v Lights – Light Cost + 80p per m of cable + Fuse holder + Time  Approx. – £75

Comet Pump with Air Release Valve- Plus Time Approx. 30 Mins – £45

Comet Tap with Micro Switch & Flex hose – Plus Time Approx. 30 Mins – £75



240v Systems

240V Hook up – Mains inlet socket fitted going to a RCBO trip and into a stainless double 3 pin socke. – £250

240V Hook up and 240 – 12v charge system – Mains inlet socket fitted going to a RCBO trip and into a stainless double 3 pin socket and onto the CTEK charger wired to a leisure battery going through a 13a fused spur – £485

240v – 12v charge system – CTEK Charger wired from already fitted 240v electrics direct

to leisure battery going through a 13a fused spur – £285



Please contact us if you wish to discuss any of these options.

Product Summary

12v and 240v systems available to be fitted by our fully trained staff at our workshop in Bideford .
